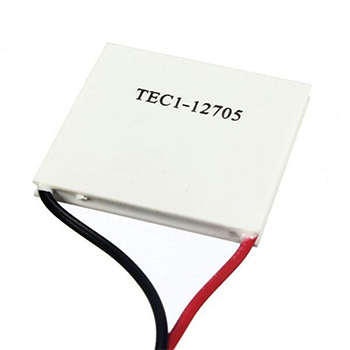

TEC1-12705 Thermoelectric Cooler

TEC1-12705 Thermoelectric Cooler

RWF 6,000

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas.

Product Description

A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas.

Specification

Dimensions: 40 * 40 * 3.8mm element number 127 on

Internal resistance: 2.5 ~ 2.8? (ambient temperature of 23 � 1, 1kHZ Ac test)

Maximum temperature: Tmax (Qc = 0) over 67 .

Working current: Imax = 4.3-4.6A (rated at 12V)

Rated voltage: 12V (Vmax: 15V starting current 5.8A)

Refrigeration power: Qcmax 50-60W

Working environment: temperature range -55 ~ 83 (high ambient temperatures drop directly affect the cooling efficiency)
