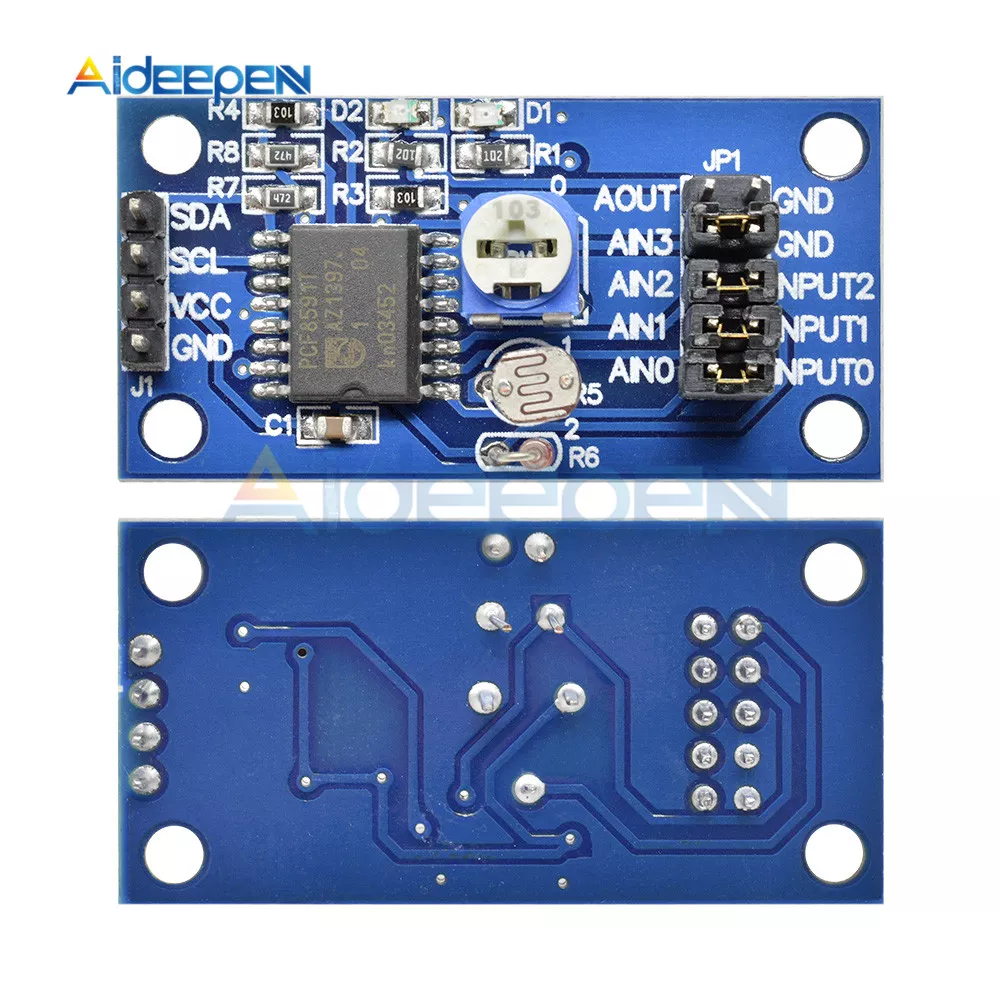

PCF8591 AD/DA Analog-To-Digital /Digital-to-Analog Converter
RWF 6,000
AD (analog / digital) / DA (digital / analog) module can serve as a bridge between digital and analog. With an analog input of 0V - 5V, a value of 8 bit is generated, which is sent again by means of the I2C protocol. This module also contains 1 output channel, which generates an analog output from an 8-bit value.
Product Description
This module has 3 built-in sensors as a bonus, which can be switched on and off by means of jumpers; a photoresistor, thermistor and potentiometer. In addition to the digital output, there is also a LED present which, depending on the analog input, is very light to very bright.
Specifications
Specifications
- Type: PCF8519 Module AD/DA Converter
- Applications: Electronic product
- Voltage Supply: 2.5V-6V
- Max VDD:-0.5V-8V
- Interface: I2C
- I2C rate: 100 KHz
- Resolution (ADC):8 bit
- Input (Single ended/differential):4/2
- Supply current max (Aout off, Aout on):250 uA/1mA
- Standby mode (no load-typ,max):1uA,15uA
- Offset error (ADC,DAC):20mV,50mV
- Linearity error:�1.5 LSB
- Gain Error:1%
- Differential input range:-Vfs/2-+Vfs/2
- I2C addresses(h/W selected =8off:0x48-0x4F
- Operating temperature:-40�C-85�C
