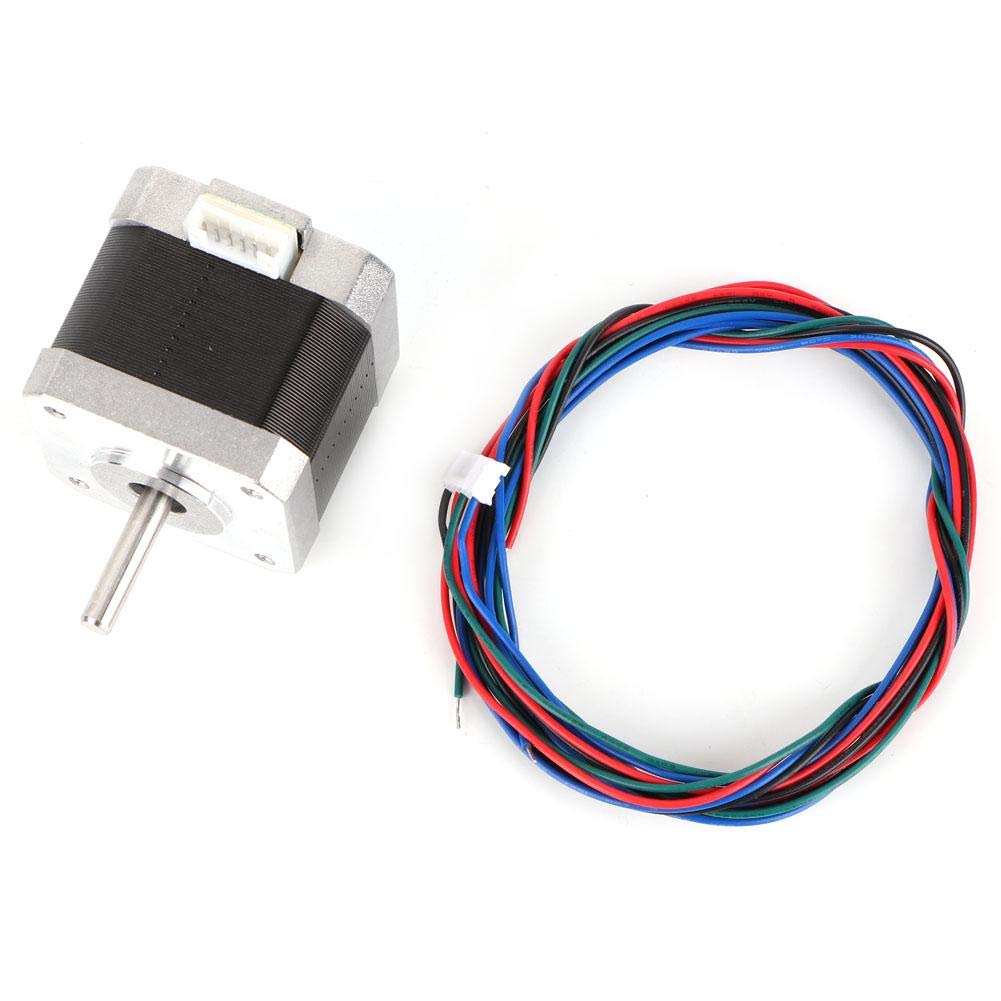

NEMA 17 42 Stepper Motor 17HS4401

RWF 17,000

NEMA 17 Stepper Motor it moves in precisely repeatable steps; hence they are the motors of choice for the machines requiring precise position control.

Product Description

Specifications

Number of phases: 2 phases
Step angle: 1.8�
Rated voltage: 3.3V DC
Rated current: 1.5A
Holding torque: 400mN. m Min (two-phase energization)
Phase resistance: 2.22 soil 10% (20C)
Phase inductance: 3.8mH � 20% (1kHz1Vrms)
Rotor inertia: 57g.cm^2
Motor weight: 288g Ref.
Insulation resistance: 100MQ Min. (DC 500V)
Insulation class: B(130�C).
Weight: 0.4kg
Step angle: 1.8+5% degrees/step voltage: 12V
Current: 1.5A/phase
Resistance level: 10.0+10%Q2/phase
Inductance value: 20+ 20%MH/phase
Bit lead style: AWG26 UL1007
Equipped with: 4 leads
Holding torque: 48N.cm sensitive
Braking torque: 2.6N.cm
Rotor torque: 68g.cm2
