Input Voltage:DC 4.5-24V

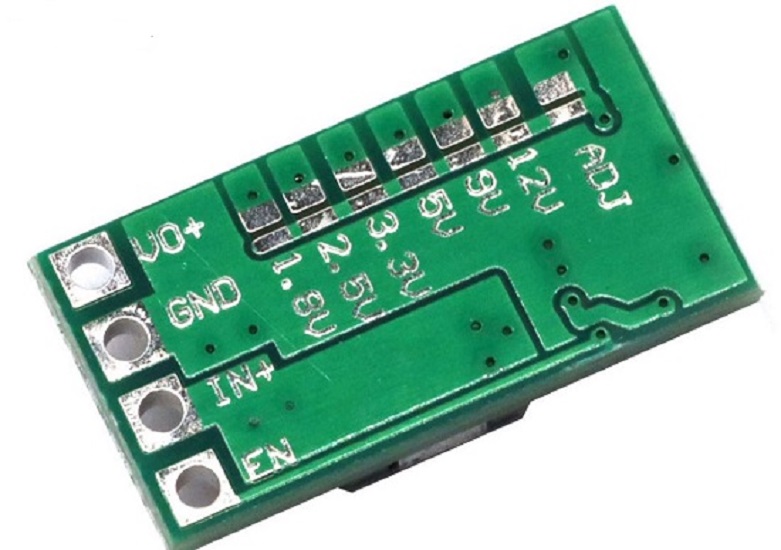

Output Voltage: integration adjustable and fixed output, back side can choose fixed output voltage.
Adjustable Range:0.8-17V and fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current:3A (max), actual testing input 12V output 1.5A
Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
Switch Frequency:500KHz
Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
Operating Voltage: -40 Celsius-85 Celsius
Output Overvoltage Protection: no
Static Current:0.85MA
Load Adjust Rate: �1%
Output Short Circuit Protection: yes.
Input Transposition Protection: no
