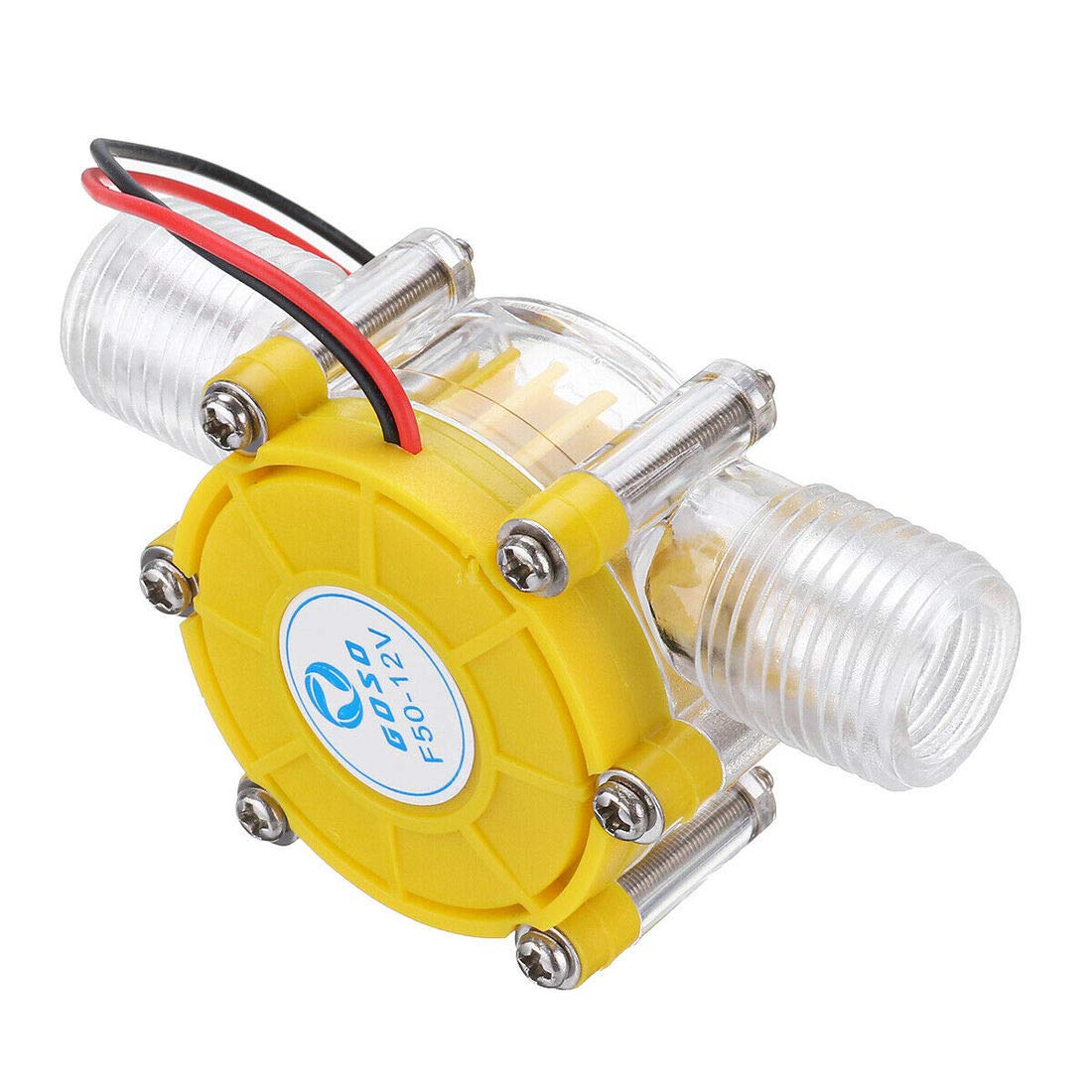

Perfect for energy conversion of the water into electrical energy mechanical equipment. Directly used to charge small battery, mobile phone, or power supply for LED lights, etc. Output characteristics: output voltage without the voltage regulator circuit is proportional to the water pressure. Installation: standard household 1/2 inch water pipe (outer diameter: 20mm, inner diameter: 13mm). F50-80V: DC 0-80V output, the generator does not have a voltage regulator circuit, the peak voltage reaches 80V, you can directly 3-12V 10W LED lights, you can directly charge the small battery, the charging peak current is about 220mA, because when charging The generated electricity is used up in a timely manner, so the voltage will be automatically kept at about 14V, and maintain a suitable voltage so that all the electricity is used to charge the small battery. F50-5V: DC 5V regulated output, you can charge your mobile phone or lithium battery with charge management chip. F50-12V: DC 12V regulated output, can supply power to 12V radio, charge, power LED lights.

Specifications:

Material: plastic+stainless steel

Color: transparent+yellow

Voltage: 5V, 12V

Size: about 88x39x58mm

Output voltage: AC 0-12V

Output current: 0-150MA

Flow range: 3-18L/m

Pressure range: 0.15-0.8MPA

Peak output current: ?220mA (12V)

Line resistance: 10.5�0.5?

Insulation resistance: 10M? (DC100 meg ohmmeter)

Peak pressure of closed outlet: 0.6Mpa

Peak pressure of outlet opening: 1.2Mpa

Starting water pressure: 0.05Mpa

Axial clearance: 0.2-1.0mm

Mechanical noise: ?55dB

Single generator: around 90g
