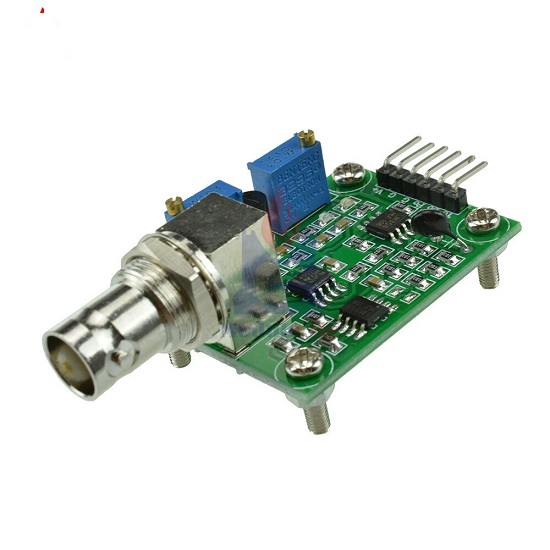

Liquid PH Value Detection Sensor with Electrode Probe

Liquid PH Value Detection Sensor with Electrode Probe

RWF 36,500

Liquid PH is an important property of the solution,it can use high in measurement accuracy and can directly output 0-5 or analog voltage signal.

Product Description

Liquid PH is an important property of the solution,it can use high in measurement accuracy and can directly output 0-5 or analog voltage signal.

Specifications

  • Heating voltage: 5�0.2V (AC -� DC)

  • Working current: 5-10mA

  • The detection concentration range: PH0-14

  • The detection range of temperature: 0-80 centigrade

  • The response time: ? 5S

  • Stability time: ? 60S

  • Power consumption: ? 0.5W

  • The working temperature: -10~50 centigrade (the nominal temperature 20 centigrade)

  • Working humidity: 95%RH (nominal humidity 65%RH)

  • Size: 42mm x 32mm x 20mm

  • The output: analog voltage signal output


BNC PH Electrode Probe

  • The PH electrode has a single cylinder that allows direct connection to the input terminal

  • of a PH meter, controller, or any PH device which has a BNC input terminal.

  • The PH electrode probe is accurate and reliable that can gives almost instantaneous readings.

  • PH range: 0-14 PH

  • Temperature range: 0-60?

  • Zero-point: 7 � 0.5PH

  • Alkali Error: 0.2PH

  • Theoretical Percentage Slope: ?98.5%

  • Internal Resistance: ?250M?

  • Response Time: ?1min

  • Operating Temperature: 0-60?

  • Terminal Blocks: BNC plug

  • BNC Connector suitable for most PH meter and controller.

  • Suitable for wide range of application: Aquariums, Hydroponics, Laboratory.
