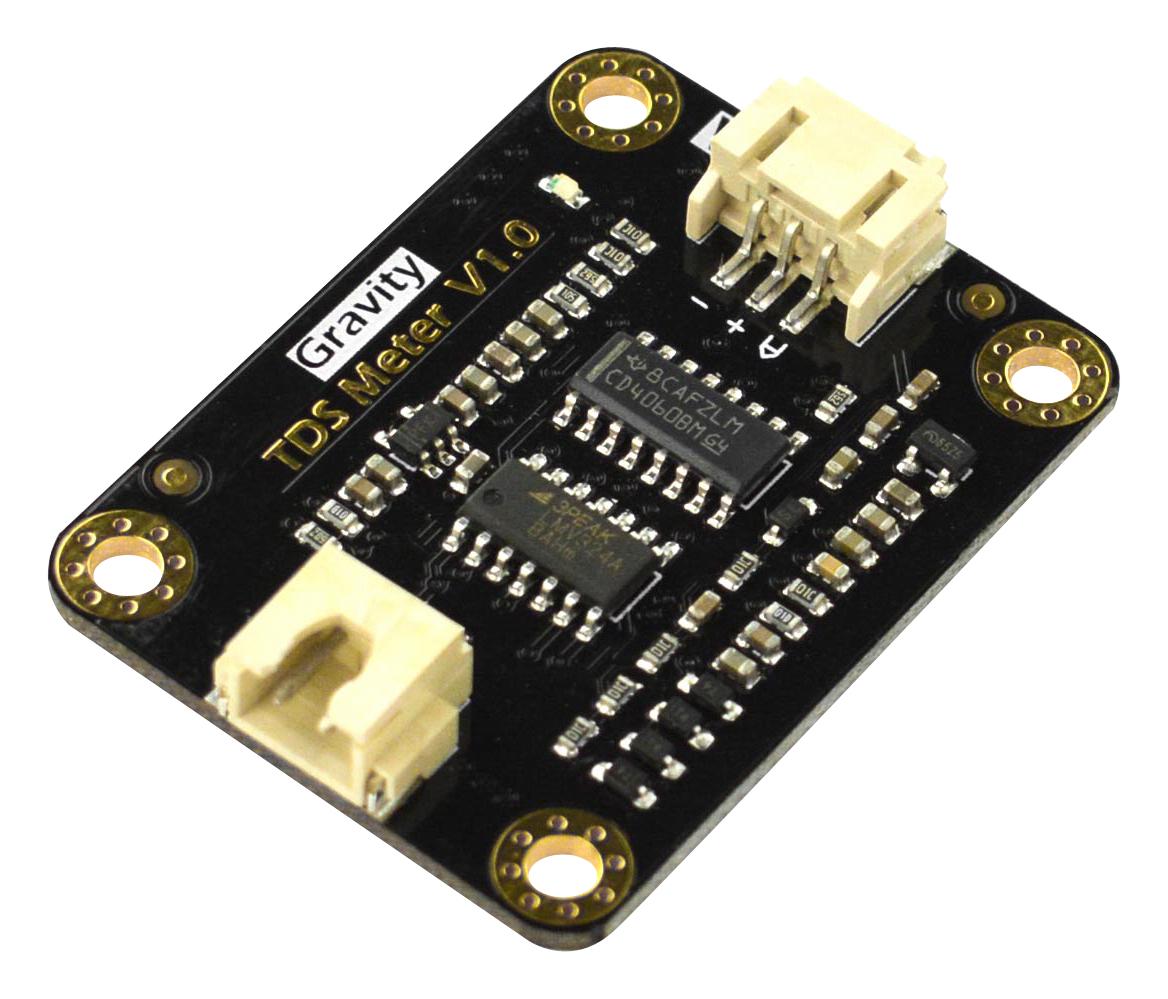

Analog TDS Sensor Water Conductivity Sensor Module Board Kit is an Arduino-compatible TDS sensor/Meter Kit for measuring TDS value of the water. It can be applied to domestic water, hydroponic and other fields of water quality testing.

Measuring the TDS value in the water is to measure the total amount of various organic or inorganic substances dissolved in water, in the unit of ppm or milligrams per liter (mg/l). Its Electrode can measure conductive materials, such as suspended solids, heavy metals and conductive ions in water. The module comes with four 3.2mm fixed holes, easy to mount on any other devices. The TDS probe is waterproof, it can be immersed in water for long time measurement.

Specifications

• Input Voltage: DC 3.3 ~ 5.5V


• Output Voltage: 0 ~ 2.3V


• Working Current: 3 ~ 6mA


• TDS Measurement Range: 0 ~ 1000ppm


• TDS Measurement Accuracy: � 10% F.S. (25 ?)


• Module Interface: XH2.54-3P


• Electrode Interface: XH2.54-2P


• Waterproof probe


• Color: white
