ESP32-CAM- to Wi-Fi Bluetooth development Board with Micro USB Port

Available at SoftTech Supply - Your trusted electronics shop in Kigali, Rwanda

ESP32-CAM- to Wi-Fi Bluetooth development Board with Micro USB Port - STS Electronic Components Kigali
ESP32-CAM- to Wi-Fi Bluetooth development Board with Micro USB Port view 1

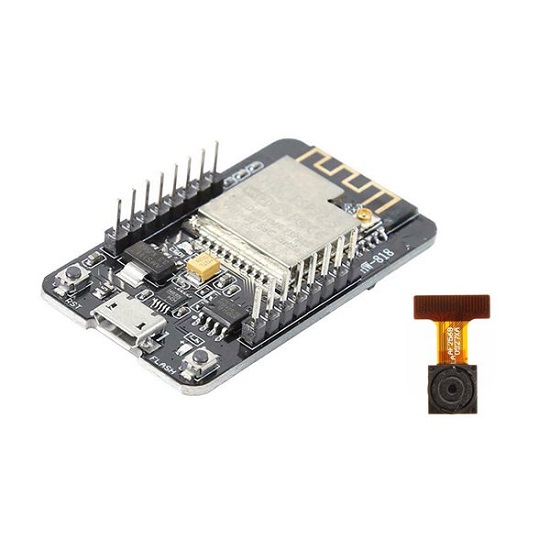

ESP32-CAM- to Wi-Fi Bluetooth development Board with Micro USB Port view 2

ESP32-CAM- to Wi-Fi Bluetooth development Board with Micro USB Port

Price:

RWF 18,000
In Stock - Ready to Ship
Quality Guaranteed
Fast Delivery
Expert Support
Easy Returns

Need help or have questions about this product?

Contact STS Support →

Product Description

The ESP32 CAM wifi module bluetooth with OV2640 Camera module 2MP for face recognization has a very competitive small-size camera module that can operate independently as a minimum system with footprint of only 40x27mm;a deep sleep current of up to 6mA and is widely used in various IOT Application.

Specifications :

  • Wireless Module: ESP32-S Wi-Fi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.

  • External Storage Micro SD Card slot

  • Camera

  • FPC connector.

  • Support for OV2640 (sold with a board) or OV7670 cameras.

  • Image Format: JPEG (OV2640 support only ), BMP, grayscale.

  • LED flashlight.

  • Expansion: 16x through-holes with UART, SPI, I2C, PWM.

  • Misc: Reset button.

  • Power Supply: 5V via pin header.

  • Power Consumption.

  • Flash LED off: 180mA @ 5V.

  • Flash LED on to maximum brightness: 310mA @ 5V.

  • Deep-sleep: 6mA @ 5V min.

  • Modem-sleep: 20mA @ 5V min.

  • Light sleep: 6.7mA @ 5V min.

  • Dimensions (ESP32): 40 x 27 x 12 (LxWxH) mm.

  • Temperature Range: Operating: -20 ~ 85 ; storage: -40 ~ 90 @ <90%RH
