2.4" TFT Digital Oscilloscope
RWF 35,000

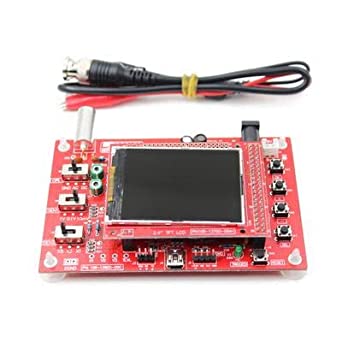

The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. Its 2.4-inch TFT LCD (320 x 240 dot matrix, 262K colors) displays nice and clear wave forms.
Product Description
DSO138 was designed as a training oscilloscope kit. It contains only the basic oscilloscope functions with no fancy features.

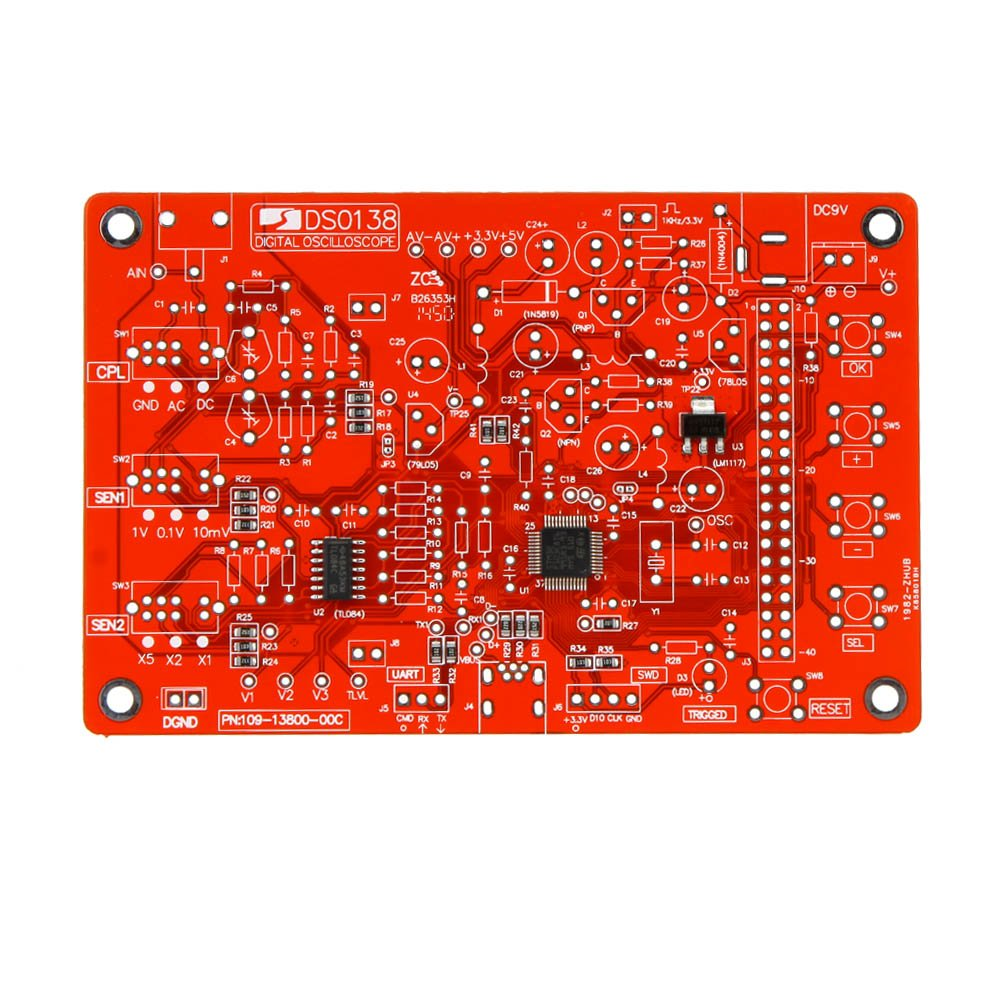

Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts.
Specifications
Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts.
Specifications
- DSO138 Kit
Type: NOT Soldered DIY Kit and if you are interested in you can find the other one in this store which SMD is Soldered.
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1MOmega
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10mus / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
Note:1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
