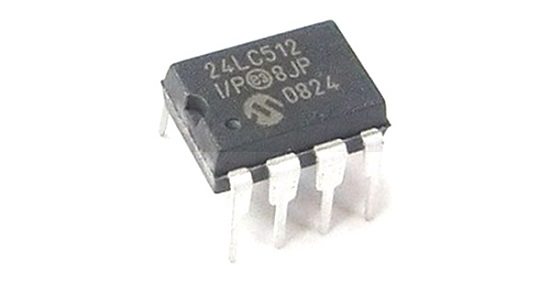

The Microchip Technology Inc. 24LC512 is a 64K x 8 (512 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low power applications. Such as personal communications and data acquisition. This device also has a page write capability of up to 128 bytes of data.

Specification

Single Supply with Operation down 2.5V for 24LC512 Devices

• Low-Power CMOS Technology:


• Active current 400 uA, typical


• Standby current 100 nA, typical


• 2-Wire Serial Interface, I2C� Compatible


• Cascadable for up to Eight Devices


• Schmitt Trigger Inputs for Noise Suppression


• Output Slope Control to Eliminate Ground Bounce


• 100 kHz and 400 kHz Clock Compatibility


• Page Write Time 5 ms max.


• Self-Timed Erase/Write Cycle


• 128-Byte Page Write Buffer


• Hardware Write-Protect


• ESD Protection >4000V


• More than 1 Million Erase/Write Cycles


• Data Retention > 200 years


• Packages Include 8-lead PDIP, SOIJ, SOIC,

TSSOP, DFN, Chip Scale and 14-lead TSSOP

• Pb-Free and RoHS Compliant


• Temperature Ranges:


• Industrial (I): -40�C to +85�C


• Automotive (E): -40�C to +125�C
