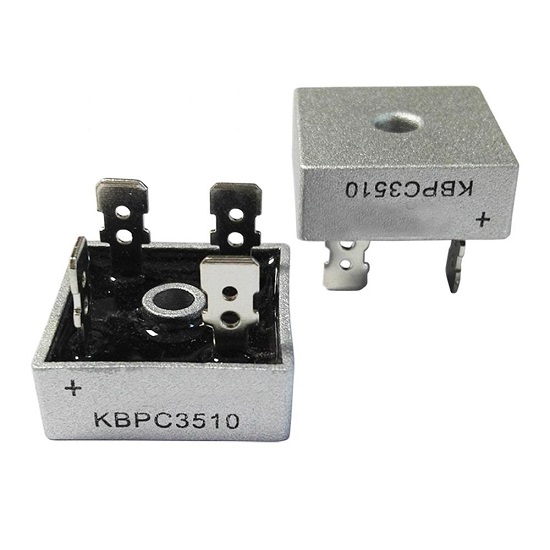

1000V KBPC3510 Rectifier Bridge Single-Phase Stack Square 35A
RWF 2,000
KBPC family of silicon bridge rectifiers has a reverse voltage of 600 V or 1000 V. The rectifiers offer different forward currents ranging from 15A to 50 A.
Product Description
- There are two types available, the KBPC W and the KBPC series which comes with 0.25 in solder FAST ON terminals. They are used in AC to DC conversion and in printed circuit applications.
Specifications
- Part No: KBPC3510.
- Bridge Type: Single Phase.
- Peak Average Forward Current IF: 35A.
- Peak Reverse Repetitive Voltage VR: 1000V.
- Mounting Type: Screw Mount.
- Package Type: KBPC Metal Case.
- Pin Count: 4.
- Diode Technology: Silicon Junction.
- Configuration: Single.
- Peak Non-Repetitive Forward Surge Current: 400A.
